Manual Setup

The manual setup option can be used to set up your project without having to authenticate with your source provider through Forestry.

Using Manual Setup

https://res.cloudinary.com/forestry-io/image/fetch/c_limit,dpr_auto,f_auto,q_80,w_640/https://forestry.io/uploads/2019/04/add-site-disable-quick-setup.png

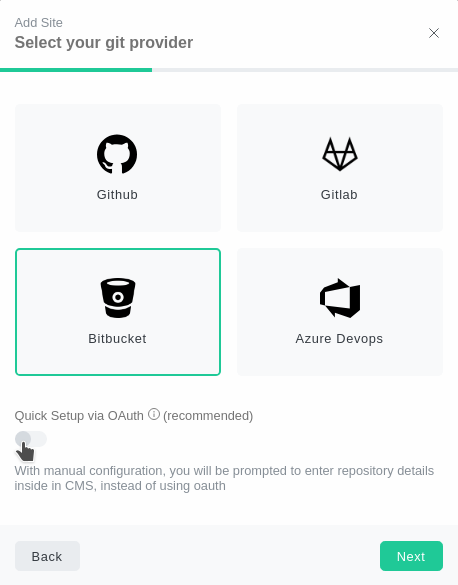

To perform manual setup of a project, disable the “Quick Setup via OAuth” toggle on the Select your git provider screen.

Before you can continue, you must still select the git provider you are using. This is necessary so Forestry can correctly interpret webhook payloads and other communication from the provider. Self-hosted GitLab installations are only available on-premise.

Setting the Repo Location

https://res.cloudinary.com/forestry-io/image/fetch/c_limit,dpr_auto,f_auto,q_80,w_640/https://forestry.io/uploads/2019/04/add-site-manual-init.png

After you click Next, you will be prompted to enter the repository URL, the branch you wish to import, and (if you are importing a Jekyll or Hugo site,) the config path. The repository URL should be the SSH URL, not the HTTPS URL.

Completing the Connection

After you enter your repo information and click Next, you will be taken to the repository settings screen on your site dashboard. This screen will give you access to the information that needs to be added to your git provider’s settings.

https://res.cloudinary.com/forestry-io/image/fetch/c_limit,dpr_auto,f_auto,q_80,w_640/https://forestry.io/uploads/2018/08/ssh-settings.png

Public Key

Forestry generates a keypair that will allow it to authenticate with your repository and push/pull commits. In order to do this, you need to add the public key provided by Forestry to the repository.

The following GitHub and GitLab instructions will add a deploy key to your site’s repository, which will give Forestry access to read from and write to the project. If your site requires additional private dependencies, you will instead want to add an SSH key to your user account in order to provide Forestry access to the private submodules.

More info: Using Private Submodules With Forestry

Add Public Key to Github

To add a new key to your Github repo, navigate to https://github.com/$USERNAME/$REPOSITORY/settings/keys, substituting $USERNAME and $REPOSITORY for the path to your repository.

Click the Add deploy key button. Enter whatever you want for the Title: this will help you identify what the key is for. Under Key, paste the public key provided by Forestry.

Be sure to check the Allow write access box before clicking Add key to add this key to your repository.

Add Public Key to GitLab

To add a new key to your GitLab repo, navigate to https://gitlab.com/$USERNAME/$REPOSITORY/settings/repository, substituting $USERNAME and $REPOSITORY for the path to your repository, and expand the Deploy Keys section.

Youy may add a label for this deploy key in the Title field to identify what this key is for. Paste the public key provided by Forestry in the Key field.

Make sure to check the Write access allowed box before clicking the Add key button to add this key to your repository.

Add Public Key to Bitbucket

To add a new key to your Bitbucket repo, navigate to https://bitbucket.org/account/user/$USERNAME/ssh-keys/, where $USERNAME is your Bitbucket username.

Click Add key to add a new key. You can use the Label field to add an identifier for this key so you will know what it’s being used for later on. In the Key field, paste in the public key provided by Forestry. Click the Add key button to save this key.

Add Public Key to Azure DevOps

To add a new key to Azure DevOps, navigate to https://dev.azure.com/$USERNAME/_usersSettings/keys, where $USERNAME is your username in Azure DevOps.

Click Add to add a new key. You can use the Description field to add an identifier for this key so you will know what it’s being used for later on. In the Key Data field, paste in the public key provided by Forestry. Click the Save button to save this key.

GithubGitLabBitbucketAzure DevOps

Generating a New Keypair

If you need to generate a new keypair, click the Generate new key button. You should see your public key change to a new value. You must add this new public key to your repository using the above instructions.

Generating a new keypair will invalidate your original keys. The connection to your source provider will not work until you add the new public key.


Webhook URL

This URL needs to be added as a webhook that reacts to push events on your repository.

Add Webhook to Github

The webhooks for your repo can be accessed at https://github.com/$USERNAME/$REPOSITORY/settings/hooks, substituting $USERNAME and $REPOSITORY for the path to your repository.

Click on Add Webhook and enter Forestry’s webhook URL as the Payload URL. Set the Content type to application/json, and select Just the push event where it asks you which events should trigger this webhook.

Click the Add webhook button to complete the webhook setup.

Add Webhook to GitLab

To add a webhook to your GitLab repository, navigate to https://gitlab.com/$USERNAME/$REPOSITORY/settings/integrations, substituting $USERNAME and $REPOSITORY for the path to your repository.

Enter the webhook URL provided by Forestry in the URL field, and leave the Secret Token field empty. Under Trigger, ensure that the box labeled Push events is checked.

Add Webhook to Bitbucket

To add a webhook to your Bitbucket repository, navigate to https://bitbucket.org/$USERNAME/$REPOSITORY/admin/addon/admin/bitbucket-webhooks/bb-webhooks-repo-admin, substituting $USERNAME and $REPOSITORY for the path to your repository.

Click the Add webhook button to add a new webhook, and insert the webhook URL provided by Forestry in the URL field. Under Triggers, select Repository push and hit the Save button.

Add Webhook to Azure DevOps

To add a webhook to your Azure DevOps Repository, navigate to https://dev.azure.com/$ORGANIZATION/$PROJECT/_settings/serviceHooks, substituting $ORGANIZATION and $PROJECT for the name of the Azure DevOps organization and project you want to add hooks for. This will take you to the Service Hooks area of the project settings.

https://res.cloudinary.com/forestry-io/image/fetch/c_limit,dpr_auto,f_auto,q_80,w_640/https://forestry.io/uploads/2019/04/az-add-webhook.png

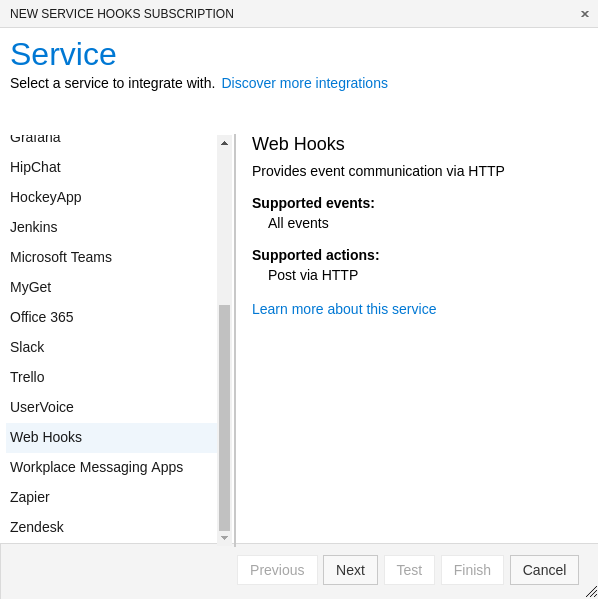

Click on Create Subscription, select Web Hooks from the available services, and then click Next.

Here you will configure the type of webhook to send. Select Code pushed for the trigger, and select the repository and branch that corresponds to your site in Forestry. Under Pushed by a member of group, use the default selection of [Any]. Click Next to continue configuring the webhook.

https://res.cloudinary.com/forestry-io/image/fetch/c_limit,dpr_auto,f_auto,q_80,w_640/https://forestry.io/uploads/2019/04/az-add-webhook-2.png

On this last configuration screen, paste in the Webhook URL from your site’s settings page in Forestry and ensure the Resource Version is set to 1.0. No further changes are necessary on this screen, so you can click Finish To create the webhook.

If you want, you can remove the messages from the payload on this configuration screen, because they are not used by Forestry. However, you must select All for Resource details to send.
Clicking Test to test the Azure DevOps webhook will not cause Forestry to import your site, because Azure sends a dummy payload in the test hook.
GithubGitLabBitbucketAzure DevOps

Last updated on April 29, 2019
